Glass Funnels

Photo of Glas-Col VentSep Separatory Funnels

VentSep, a special 1-liter or 2-liter separatory funnel with a built-in relief valve, can be used on Glas-Col's Bench-top Shaker or either of the Glas-Col 3D shakers. That means you can shake up to eight 2-liter funnels or ten 1-liter funnels at once without worrying about pressure buildup. What's more, VentSep features a screw cap instead of a penny-head stopper. As a result, VentSep is safer to use in the laboratory because the screw cap doesn't need restraining and won't come off at inappropriate times, though it will come off easily when you want it to.

Photo of Glas-Col Separatory Funnels w/Screw-On Drain

Glas-Col's new separatory funnel is designed to offer a new level of convenience and safety when used with Glas-Col shakers. This funnel has a screw cap with a PTFE resin lining to reduce the possibility of contamination. The drain spout is a screw-on PTFE resin design which reduces the chance of breakage and allows for easier cleaning. When used with Glas-Col's new pressure relief valve (S2214F-7, -8), it offers the convenience of self-venting for applications where pressure build-up is a concern.

Photo of Corning 6160 PYREX® 60° Angle Fluted Funnel with Long Stem

These PYREX® 60° angle fluted funnels have a strong beaded edge and a long stem. The funnels are fabricated from blanks formed to a 60° angle and have depressed inside flutings further decreases filtering time.

Photo of PYREX® Powder Funnels

These PYREX® funnels have a short wide stem and are used for transferring powders or filling bottles.

Photo of Corning 6240-75 PYREX® 75mm Diameter Stemless Funnels

These 75mm diameter PYREX® stemless funnels are of molded construction with bottoms ground flat and have a 6mm opening. For use in the sugar industries.

(Sample Photo Shown. Individual items may differ from the image shown.)

Photo of Corning 6340 PYREX® Globe-Shaped Separatory Funnel with Glass Stopcock and Standard Taper Stopper

These PYREX® globe-shaped separatory funnels are made from specially molded blanks which are tapered toward the stopcock to facilitate the separation of liquids. Their sturdy design makes them excellent for rack work. They have glass Standard Taper stopcocks and strong, hollow Standard Taper glass stoppers.

(Sample Photo Shown. Individual items may differ from the image shown.)

Photo of Corning 6383 PYREX® Graduated Cylindrical Separatory Funnel with PTFE Stopcock and Glass Standard Taper Stopper

These PYREX® cylindrical separatory funnels are graduated to show approximate capacity, have a micro-finish PTFE stopcock and a strong, lightweight PYREX® Standard Taper stopper. The PTFE plug fits into the micro-finish barrel. The plug also reduces freezing problems and grease contamination.

(Sample Photo Shown. Individual items may differ from the image shown.)

Photo of Corning 6180 PYREX® Fluted 60° Angle Funnels with Short Stem

These PYREX® 60° angle fluted funnels have a strong beaded edge and a short stem. The funnels are fabricated from blanks formed to a 60° angle and have depressed inside flutings further decreases filtering time.

(Sample Photo Shown. Individual items may differ from the image shown.)

Photo of Corning 6140 PYREX® Plain 60° Angle Funnel with Long Narrow Stem

These funnels have a beaded edge for strength. They are fabricated from blanks formed to a 60° angle which permits accurate fitting of the filter paper thus reducing filtering time. The stems are made of heavy wall tubing approximately 150mm (6") long.

(Sample Photo Shown. Individual items may differ from the image shown.)

Photo of Corning 6400 PYREX® Squibb Separatory Funnel with Glass Stopcock and Glass Standard Taper Stopper

These PYREX® separatory funnels have glass Standard Taper stopcocks and strong, hollow Standard Taper glass stoppers.

(Sample Photo Shown. Individual items may differ from the image shown.)

Photo of Corning 66402 PYREXPLUS® Coated Squibb Separatory Funnel with PTFE Stopcock and Glass Standard Taper Stopper

These PYREXPLUS® coated pear-shaped separatory funnels have a protective PVC coating for longer product life and safety. Protective coating helps prevent glass from shattering and reduces spills, is autoclavable (121° C) and resistant to thermal shock. The funnels have Polytetrafluorethylene (PTFE) Standard stopcocks and strong, hollow Standard Taper glass stoppers. The PTFE plug fits into the micro-finish barrel. The plug also reduces freezing problems and grease contamination.

Photo of Corning 6302 PYREX® Squibb Separatory Funnel with Rotaflo® Stopcock and Glass Standard Taper Stopper

These PYREX® Squibb separatory funnels have Rotaflo® stopcocks and strong, hollow glass stoppers. Stem O.D. is 10mm.

(Sample Photo Shown. Individual items may differ from the image shown.)

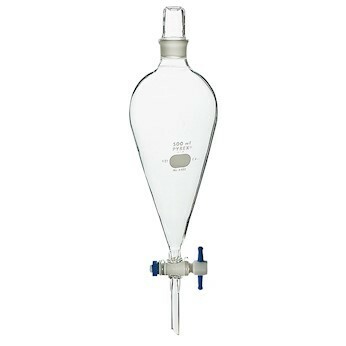

Photo of Corning 6404 PYREX® Pear-Shaped Squibb Separatory Funnel with PTFE Stopcock and Polyethylene Standard Taper Stopper

These PYREX® pear-shaped glass separatory funnels have PTFE (Polytetrafluorethylene) stopcocks and Standard Taper polyethylene stoppers. The stopper is made with a closed bottom and is of linear high density polyethylene to conform to Standard Taper stopper dimensions. The PTFE plug fits into the micro-finish barrel. The plug also reduces freezing problems and grease contamination. For replacement polyethylene Standard Taper stoppers, see No. 7624; for PTFE stopcock assemblies, see No. 7681.

(Sample Photo Shown. Individual items may differ from the image shown.)

Photo of Corning 36060 PYREX® Büchner Funnels with Fritted Disc

These PYREX® Büchner funnels are especially useful where filter paper would be attacked by the materials being filtered. The disc should not be subjected to pressure differential in excess of 1 atmosphere. The top edge is beaded. These funnels are available in three different porosities of PYREX® brand fritted ware so that precipitates varying in size can be filtered at maximum speed with no sacrifice of retention. Porosity is controlled in manufacture, and discs are individually tested and graded into these classifications.

Photo of Kimble 29055F KIMAX Squibb Pear-Shaped Separatory Funnels with PTFE Stopcock and Standard Taper 24/40 Joint

Kimble 29055F KIMAX Squibb Pear-Shaped Separatory Funnels with PTFE Stopcock and Standard Taper Joint have a Ground Glass Stopper. Lower stems have an ID large enough that a column of liquid will "break" with the stopcock closed, thereby giving a more complete separation and eliminating the necessity of emptying the funnel. Full length Standard Taper 24/40 joint protects the delivery stem. Supplied with a drip tip designed to provide drop counting. Manufactured from 33 expansion, low extractable borosilicate glass conforming to USP Type I and ASTM E438, Type I, Class A requirements.

Photo of Kimble 28400 KIMAX Büchner Filter Funnels with KIMFLOW Fritted Disc

Kimble 28400 KIMAX Büchner Filter Funnels with KIMFLOW Fritted Disc are used wherever filter paper and membranes cannot withstand the chemical attack of the filtrate. The funnels are constructed with heavy-walled stems, and the top rims are beaded for extra strength. Come with a marking spot and a KIMFLOW® fritted disc. Manufactured from 33 expansion, low extractable borosilicate glass conforming to USP Type I and ASTM E438, Type I, Class A requirements.

(Sample Photo Displayed. Individual items may differ from the image shown.)





Photo of Kimble 29043F KIMAX Globe-Shaped Separatory Funnel with PTFE Stopcock

Kimble 29043F KIMAX Globe-Shaped Separatory Funnel with PTFE Stopcock is supplied with a  ground glass standard taper stopper and a PTFE stopcock. Gradually tapering shoulders and a wide neck facilitate cleaning. Sharp separations are provided for by a narrow bore in the body just above the stopcock. Stem length is 175 mm. Designed from ASTM Specification E1096, Type 2 requirements. Replacement stopper is 41900R.

(Sample Photo Displayed. Individual items may differ from the image shown)



Photo of Kimble 29034F-500 KIMAX 500mL Ungraduated Addition Funnel with PTFE Stopcock

Kimble 29034F-500 KIMAX 500mL Ungraduated Addition Funnel with PTFE Stopcock is supplied with a ground glass standard taper stopper and a PTFE stopcock. Funnel has a full length  24/40 joint on the delivery stem with a drip tip. Designed to ASTM Specification E1096, Type 1C requirements with a ground joint, except ungraduated. Replacement stopper is 41900R.

(Sample Photo Displayed. Individual items may differ from the image shown)



Photo of Kimble 28900 KIMAX Long Stem Filling Funnels with 58° Angle and 150mm Long Stem

Kimble 28900 KIMAX Long Stem Filling Funnels with 58° Angle and 150mm Long Stem are constructed with heavy uniform walls and strong, molded rims. Fire polished stems give a long service life. Funnels have a high resistance to chemical attack and mechanical and thermal shock. The 58° funnel angle is a Kimble exclusive, formed to an exact angle for rapid filtration. A piece of filter paper, when folded to form the filtering cone, forms a precise 60° angle. If the funnel is also 60°, as are the vast majority, then the only effective filtering area is down near the tip.

Photo of Kimble 28980 KIMAX 6" Wide Top Long Stem Filling Funnels with 60° Angle and 150mm Long Stem

Kimble 28980 KIMAX 6" Wide Top Long Stem Filling Funnels with 150mm Long Stems are constructed with heavy uniform walls and strong, fire polished rims and stems to give a long service life. Funnels have a high resistance to chemical attack, mechanical, and thermal shock. Stem is 150mm long. Designed from ASTM Specification E1095, Type 1, Class B requirements. 1/case.

(Sample Photo Displayed. Individual items may differ from the image shown)
