Extraction Apparatus

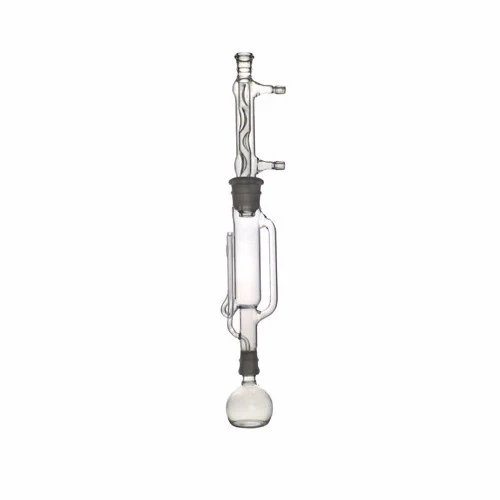

Photo of Corning 3840 PYREX® Extractor System with Soxhlet Extractor and Allihn Condenser

These PYREX® extractor systems consist of a Soxhlet extractor with a inner Standard Taper joint on the bottom and a outer Standard Taper joint on the top, an Allihn condenser with a inner Standard Taper joint on the bottom and a flask with a outer Standard Taper joint. The tubulation O.D. on the condenser is 10mm. For replacement Soxhlet extractors, see No. 3740. For replacement flasks, see No. 3840-FO and select the appropriate size.

Photo of Corning 3880-M PYREX® 250mL Extractor System with Soxhlet Extractor and Friedrichs Condenser

This is an efficient 250mL PYREX® extraction apparatus for general purpose use. Consists of a Soxhlet extractor with a 24/40 inner Standard Taper joint on the bottom and a 45/50 outer Standard Taper joint on the top, a special Friedrichs condenser with a 45/50 inner Standard Taper joint on the bottom and a flask with a 24/40 outer Standard Taper joint. The condenser tubulation O.D. is 10mm. For a replacement extractor only, see No. 3740; for a replacement flask, see No. 4100; for a replacement condenser, see No.

Photo of Kimble 24027 KIMAX Soxhlet Extraction Condenser Only

Kimble 24027 KIMAX Soxhlet Extraction Condenser Only. Replacement extraction condensers for E1442 apparatus.

(Sample Photo Displayed. Individual items may differ from the image shown)



Photo of Kimble 24005 KIMAX Soxhlet Extraction Apparatus

Kimble 24005 KIMAX Soxhlet Extraction Apparatus. The Soxhlet Extractor was designed for separating an analyte with limited solubility in a particular solvent from an insoluble compound. Approximate capacities are measured to the base of the flask neck. Standard Taper joint between the Soxhlet tube and flask is 24/40. Thimble size is determined by the ID of the extraction tube. Hose connections on condenser accept 5/16” ID flexible tubing. 1/case.

(Sample Photo Displayed. Individual items may differ from the image shown)



Photo of Kimble 24071 KIMAX Soxhlet Extraction Tube Only

Kimble 24071 KIMAX Soxhlet Extraction Tube Only is a replacement part for the Kimble 24005 KIMAX Soxhlet Extraction Apparatus. Bottom joint is 24/40.

(Sample Photo Displayed. Individual items may differ from the image shown)
